Die

Extrusion plant die requires high accuracy and precision to deliver the qualitative output. At Tirupati industries, we manufacture mainly two types of extrusion plant die for HDPE and RPVC. Each die is made with state-of-the-art machine tools to ensure that you get the best quality pipe. With our team of experts we take care of each dimension tolerance with efficient quality control in each production step.

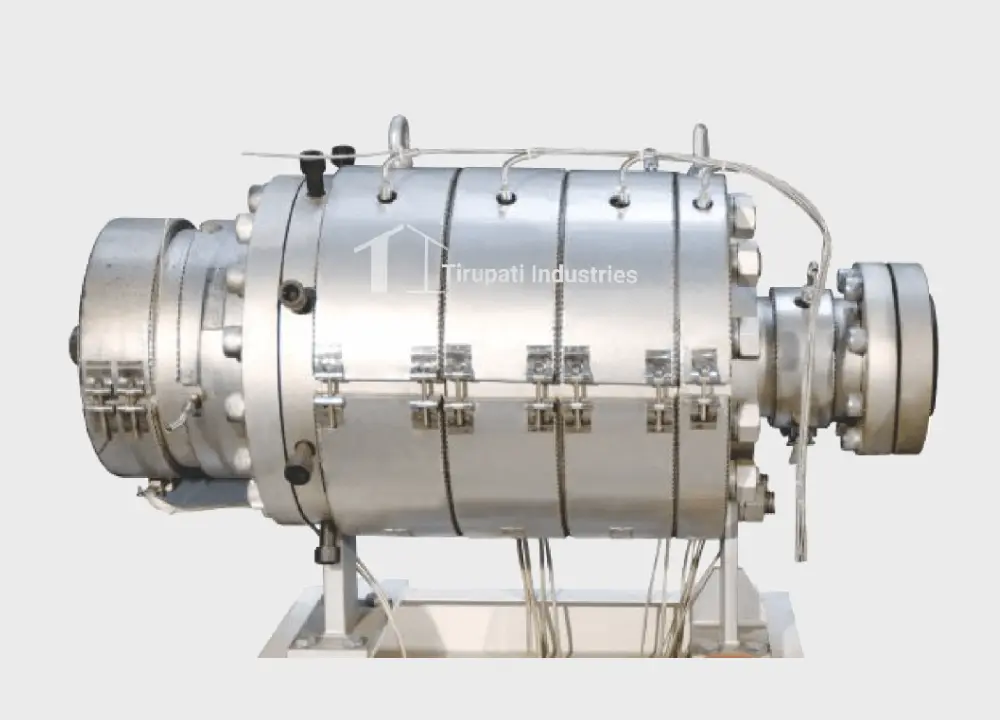

RPVC Extrusion Plant Die

At Tirupati Industries, We Manufacturer PVC extrusion die up to 315 mm Pipe size For PVC Pipe Extrusion Plant.

Design: Spider design, which balances the melt flow by providing a more uniform exit velocity across the entire die exit.

Features:

  • High volume low pressure design ensures vast thickness range
  • Uniform melt distribution throughout the entire pipe circumference
  • Twin die heads for higher outputs in smaller diameters
  • Extruders utilization from 80-100% even with smaller pipes
  • Elimination of continuous spider marks (ID to OD) allowing better mechanical properties of the pipe
  • Ideal residence time profile with selective temperature control on the sensitive material

Specification:

Model W-63 W-110LV W-110HV W-200LV W-200HV W-250 W-315
Pipe-Size
(mm) 		20-63 20-110 20-110 32-200 63-200 75-250 90-315
Output
(Kg/hr) 		100 200 250 250 320 425 550
Modal Pipe-Size (mm) Output (Kg/hr)
W-63 20-63 100
W-110LV 20-110 200
W-110HV 20-110 200
W-200LV 32-200 250
W-200HV 63-200 320
W-250 75-250 425
W-315 90-315 550

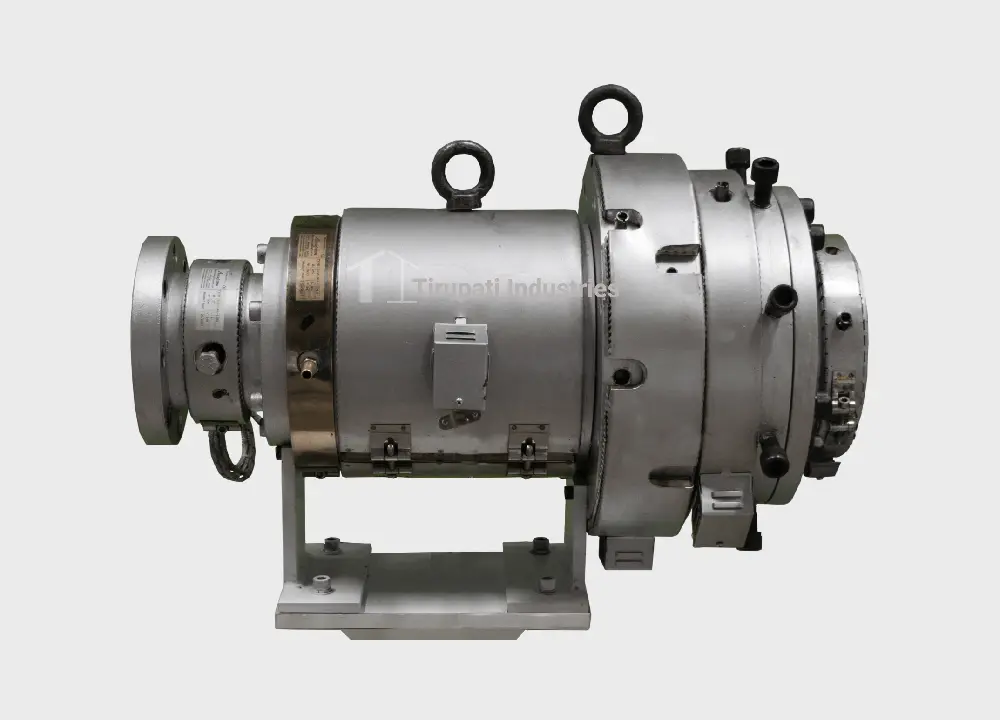

HDPE Extrusion Plant Die

At Tirupati Industries, We Manufacturer PVC extrusion die up to 315 mm Pipe size For PVC Pipe Extrusion Plant.

Design: Spider design, which balances the melt flow by providing a more uniform exit velocity across the entire die exit.

Features:

  • High volume low pressure design ensures vast thickness range
  • Uniform melt distribution throughout the entire pipe circumference
  • Twin die heads for higher outputs in smaller diameters
  • Extruders utilization from 80-100% even with smaller pipes
  • Elimination of continuous spider marks (ID to OD) allowing better mechanical properties of the pipe
  • Ideal residence time profile with selective temperature control on the sensitive material

Specification:

Model WM-50 WM-200 WM-250 WM-450
Pipe-Size
(mm) 		20-63 20-110 20-110 90-450
Output
(Kg/hr) 		200 500 800 1000
Modal Pipe-Size (mm) Output (Kg/hr)
WM-50 20-63 200
WM-200 20-110 200
WM-250 20-110 800
WM-450 90-450 1000
